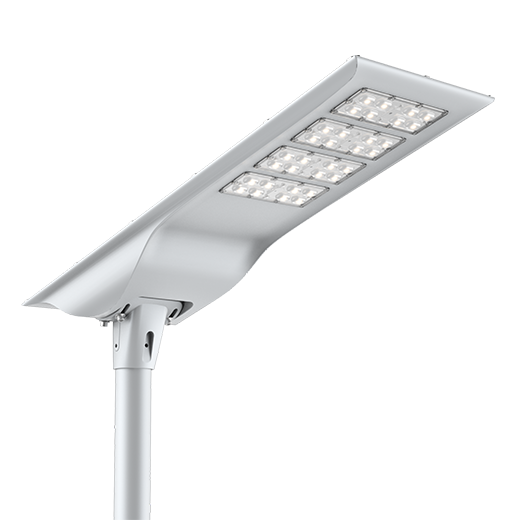

endurance lights solar street light



Precision Engineering for Government Tenders and Major Road Projects



I. Overcoming the Limitations of Fixed-Angle Lighting For major highway projects and municipal tenders, fixed-angle solar lights often fall short of strict lux level requirements. Our Industrial-Grade Split Solar series solves this through a modular design that allows for the independent orientation of the Solar Panel. By separating the PV module from the luminaire, engineers can orient the panel towards the optimal solar zenith while the light fixture remains perfectly aligned with the road surface. This flexibility results in a 20-30% increase in energy collection, a critical factor for projects in high-latitude or mountainous regions.



II. MPPT Charging: The Heart of the System Standard PWM controllers are insufficient for professional road lighting. Our split systems are equipped with high-speed Maximum Power Point Tracking (MPPT) controllers. This advanced circuitry tracks the peak power voltage of the solar array in real-time, even in shaded or overcast conditions. The tracking efficiency reaches 99.9%, ensuring that the energy flow to the high-capacity LiFePO4 battery is maximized. This technology is vital for meeting the "365-day light-on" guarantee required by many government infrastructure departments.



III. Robust Construction for Category 14 Typhoons Road infrastructure must withstand the fury of nature. The luminaire housing is constructed from die-cast ADC12 aluminum, treated with a marine-grade anti-corrosion coating. The structural brackets are reinforced to withstand wind speeds of up to 160km/h (Category 14). We utilize high-lumen Bridgelux LED chips paired with professional Grade-3 street lighting lenses, ensuring a wide, uniform distribution that eliminates dark spots between poles, thereby increasing driver safety and meeting international roadway standards.



IV. Full Technical & Documentation Support We don't just supply hardware; we provide a complete engineering package. Our factory team offers DIALux lighting simulations, foundation drawings, and comprehensive test reports (IK08, IP66, Wind Resistance). We are experienced in the specific demands of international bidding, providing the documentation needed to clear technical hurdles and win competitive contracts.



V. Technical Specifications (Project Standard)



LED Source: 60W-120W High Power Modules

Solar Panel: 100W-200W Monocrystalline (Detached)

Autonomy: 3-5 Rainy Days backup capacity

Controller: Intelligent MPPT with IoT expansion slot

Operation: Automatic Dusk-to-Dawn + Time dimming
