Core Product Attributes

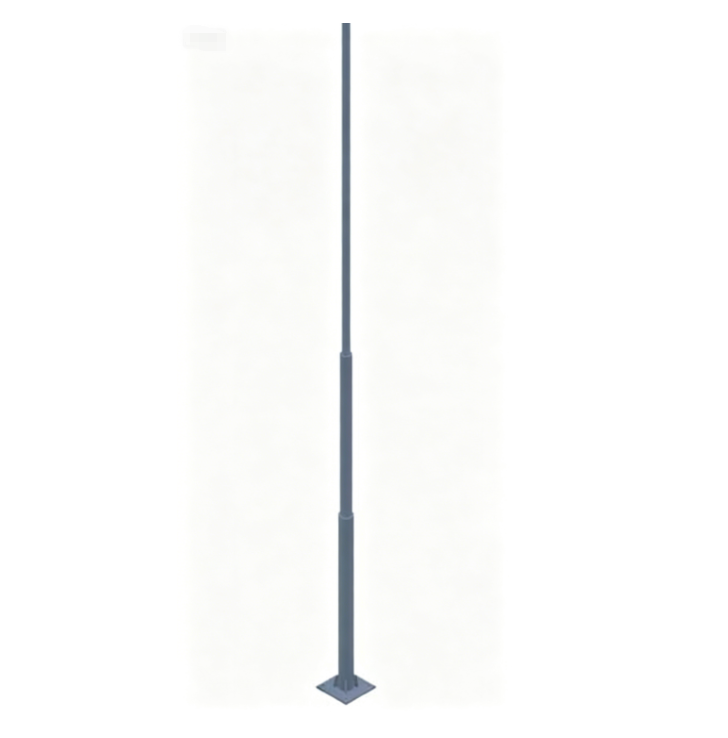

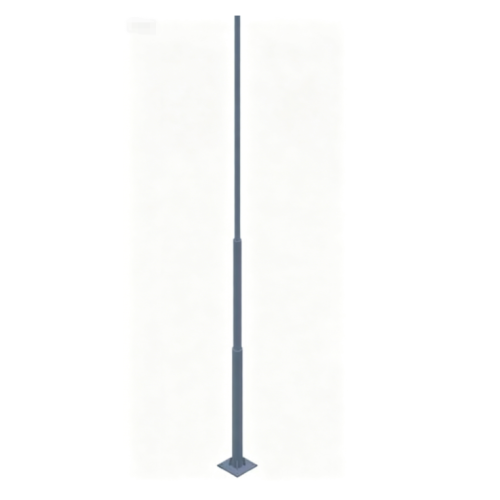

Product Name :Hot Dip Galvanized street light Pole Q235 Steel 3-15m Material: Q235 Carbon Steel (Optional Q345 Steel)
Height:3m-15m (Customizable, Standard: 6m/8m/10m)
Shape:Square / Tapered / Octagonal (Customizable)
Arm Type:Single Arm / Double Arm (Arm Length: 0.5m-2m)
Surface Treatment:Hot Dip Galvanized (Zinc Layer: ≥85μm) + Optional Powder Coating
Wall Thickness:3mm-8mm (Adjustable by Height & Load)
Flange Size:260*260mm/300x300mm / 400x400mm / 500x500mm (Customizable)
Anti-Corrosion Grade:ISO 1461 (Salt Spray Test ≥2000 Hours)
Service Life:20+ Years
Application:Municipal Engineering, Highway, Roadway, Solar/Led Street Light, Parking Lot, Stadium MOQ:1 Sets (Negotiable for Large Projects)
Certification:ISO 9001, CE, SGS,IP66.IK10 (If Available)
Customization:Size, Shape, Arm Type, Color, Logo, Flange Size
Product Description
Superior Anti-Corrosion Performance: Full hot dip galvanization process with ≥85μm zinc layer, compliant with ISO 1461 standard. Resists rust, moisture and harsh weather (coastal, rainy, high-temperature areas), ensuring 20+ years service life.
High-Strength Q235 Steel: Selected high-quality carbon steel for stable structure, strong load-bearing capacity (supports 5-20kg lighting fixtures) and wind resistance (up to 160km/h, suitable for high-wind regions).
Customizable Design: Flexible options for height (3m-15m), shape (square/tapered/octagonal), arm type (single/double), flange size and color (powder coating available). Meets various project requirements.
Easy Installation: Pre-drilled flange base with matching bolts, simple assembly steps. Professional installation drawing provided for free.
Wide Application: Perfect for municipal roads, highways, parking lots, stadiums, residential areas, solar/LED street light supporting, etc.
Factory Direct Supply: 16+ years of manufacturing experience in street Light Poles, no middlemen Strict Quality Control: Each pole undergoes 3 inspections
Customer benefits
• Procurement costs are reduced by 20%, with no frequent replacement costs for long-term use
• The project implementation cycle is shortened by 40%, making installation hassle-free and effortless
• After-sales issues have decreased by 90%, resulting in an improvement in both word-of-mouth and repeat purchase rate
• Multi-size adaptability, easily undertaking various municipal lighting engineering orders
Supporting evidence guarantee
• CE+ISO+SGS triple certification, meeting international municipal engineering quality standards
• We have provided services for projects such as the renovation of old street lamps in Europe and the Lekki Deep Sea Port in Nigeria, with a cumulative delivery of over 30,000+ poles. Our quality has been verified through practical use, and dealers have reported a 50% increase in repurchase rates.
Types of poles:
street light poles, Solar Street Light poles, Garden Light poles, high poles, signal light poles, traffic signal poles, surveillance poles, signpost poles, pedestrian light poles, single-arm light poles, double-arm light poles, irregular-shaped light poles, gantry frames, height limit frames, and various other types of poles These poles are classified as:
Conical Rod, Round Rod, Equal Diameter Rod, Square Rod, Hexagonal Rod, Octagonal Rod, Dodecagonal Rod, Polygonal Rod, Adjustable Rod, Folding Rod
Custom-shaped lampposts
1.All series are made of national standard Q235B/Q345B high-quality steel with high density and strong toughness. No trachoma or crack on the surface, the overall structure is stable, not easy to deform or break. It is suitable for long-term outdoor use in various scenarios such as global urban roads, rural roads and municipal parks.
2.Adopts hot-dip galvanizing + electrostatic powder coating double anti-corrosion process. The galvanized layer is uniform and standard, and the powder coating has strong adhesion without peeling or fading. It can effectively resist severe weather such as heavy rain, typhoon, high temperature exposure, salt fog and frost, suitable for special overseas areas such as coastal, rainy, high temperature and alpine regions, with a service life of more than 20 years.
3.Integral forming and welding process with full and smooth welds, no virtual welding or missing welding. Optimized by mechanical structure, the wind resistance grade reaches above level 12 with good seismic performance. It has high fault tolerance for vehicle impact, zero potential safety hazards in outdoor operation, and complies with municipal engineering safety standards in Europe, America, the Middle East, Africa and other regions.
4.Adopts customized split/integrated structure with accurate flange hole diameter and standard hole position, equipped with a full set of installation and fixing accessories. The structural design conforms to international construction habits, no complex tools required, simple and efficient installation, which greatly saves labor, construction time and project cost.
5.Full customization of height, wall thickness, shape, color, opening position and cantilever style is supported. It can be matched with various traffic lights, surveillance cameras, equipment cabinets, LED displays and other devices, suitable for various engineering projects such as municipal renovation, new roads, smart transportation and security monitoring in all countries.
6.All poles are produced in strict accordance with ISO international quality system standards, support customized specifications of various national standards. We can provide factory inspection reports, material certificates and export customs documents with no export barriers, meeting global shipping and customs clearance requirements.
7.The traffic light cantilever adopts mechanical extension design with scientific proportion of long and short arms, stable extension without shaking. It ensures unobstructed light emission of traffic lights from multiple angles, meets the all-round visibility needs of road vehicles and pedestrians, greatly improves road traffic safety, and fits the requirements of overseas smart municipal traffic construction.
8.The pole has uniform wall thickness and strong rigidity, and the cantilever is reinforced with no high-frequency jitter in windy weather. It fundamentally avoids blurring, stuttering and offset of monitoring images, ensuring high-definition and stable security monitoring images all day long, which is the preferred product for overseas smart security, urban public security and park monitoring.
9.Reserved mounting positions for camera bracket, equipment box and lightning protection device, one pole for multiple purposes. It can carry monitoring, lightning protection, warning signs, fill lights and other equipment at the same time, saving municipal land occupation and project budget. With a simple and beautiful appearance, it conforms to overseas urban landscape construction standards.
