Product Description

Product Attributes

Brand: CLJT

Certification: ISO

Packaging & Delivery

The file is encrypted. Please fill in the following information to continue accessing it

Light Pole Production Workshop



Product Description

Core Product Attributes

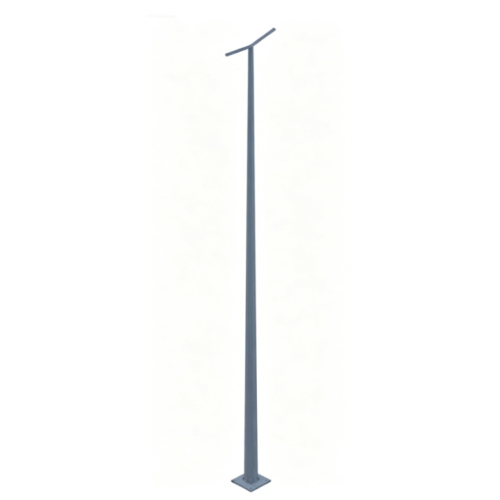

Product Name :Hot Dip Galvanized street light Pole Q235 Steel 3-15m

Material: Q235 Carbon Steel (Optional Q345 Steel)

Height:3m-15m (Customizable, Standard: 6m/8m/10m)

Shape:Square / Tapered / Octagonal (Customizable)

Arm Type:Single Arm / Double Arm (Arm Length: 0.5m-3m)

Surface Treatment:Hot Dip Galvanized (Zinc Layer: ≥85μm) + Optional Powder Coating

Wall Thickness:3mm-8mm (Adjustable by Height & Load)

Flange Size:260*260mm/300x300mm / 400x400mm / 500x500mm (Customizable)

Anti-Corrosion Grade:ISO 1461 (Salt Spray Test ≥2000 Hours)

Service Life:20+ Years

Application:Municipal Engineering, Highway, Roadway, Solar/Led Street Light, Parking Lot, Stadium

MOQ:1 Sets (Negotiable for Large Projects)

Certification:ISO 9001, CE, SGS,IP66.IK10 (If Available)

Customization:Size, Shape, Arm Type, Color, Logo, Flange Size

Product Description

Superior Anti-Corrosion Performance: Full hot dip galvanization process with ≥85μm zinc layer, compliant with ISO 1461 standard. Resists rust, moisture and harsh weather (coastal, rainy, high-temperature areas), ensuring 20+ years service life.

High-Strength Q235 Steel: Selected high-quality carbon steel for stable structure, strong load-bearing capacity (supports 5-20kg lighting fixtures) and wind resistance (up to 160km/h, suitable for high-wind regions).

Customizable Design: Flexible options for height (3m-15m), shape (square/tapered/octagonal), arm type (single/double), flange size and color (powder coating available). Meets various project requirements.

Easy Installation: Pre-drilled flange base with matching bolts, simple assembly steps. Professional installation drawing provided for free.

Wide Application: Perfect for municipal roads, highways, parking lots, stadiums, residential areas, solar/LED street light supporting, etc.

Factory Direct Supply: 16+ years of manufacturing experience in street Light Poles, no middlemen

Strict Quality Control: Each pole undergoes 3 inspections

Customer benefits

• Procurement costs are reduced by 20%, with no frequent replacement costs for long-term use

• The project implementation cycle is shortened by 40%, making installation hassle-free and effortless

• After-sales issues have decreased by 90%, resulting in an improvement in both word-of-mouth and repeat purchase rate

• Multi-size adaptability, easily undertaking various municipal lighting engineering orders

Supporting evidence guarantee

• CE+ISO+SGS triple certification, meeting international municipal engineering quality standards

• We have provided services for projects such as the renovation of old street lamps in Europe and the Lekki Deep Sea Port in Nigeria, with a cumulative delivery of over 30,000+ poles. Our quality has been verified through practical use, and dealers have reported a 50% increase in repurchase rates.

Types of poles:

street light poles, Solar Street Light poles, Garden Light poles, high poles, signal light poles, traffic signal poles, surveillance poles, signpost poles, pedestrian light poles, single-arm light poles, double-arm light poles, irregular-shaped light poles, gantry frames, height limit frames, and various other types of poles

These poles are classified as:

Conical Rod, Round Rod, Equal Diameter Rod, Square Rod, Hexagonal Rod, Octagonal Rod, Dodecagonal Rod, Polygonal Rod, Adjustable Rod, Folding Rod

Custom-shaped lampposts

	Parameter Table
	Main Body Dimensions
1	Pole Height	3m(≈9 ft )、4m(≈13ft )、5m(≈16ft )、6m(≈19ft )、8m(≈26ft )、10m(≈32ft )、12m(≈39ft )、15m(≈49ft )、18m(≈59ft )、20m(≈65ft )
2	Top Outer Diameter	50mm/60mm/70mm/80mm... Customizable
3	Bottom Outer Diameter	110mm/130mm/140mm/145mm/165mm/180mm/195mm/200mm... Customizable
4	Thickness	2.0/2.3/2.5/3/3.25/3.5/3.75/4.0/4.5/5.0/6.0mm... Customizable; thicker wall thickness for higher poles.
5	Pole Structure Type	Pole types: Conical pole (most widely used), octagonal pole, square pole, straight round pole, two-section telescopic pole, one-piece flanged pole; high mast lights are mostly segmented telescopic type
6	Number of Lamp Arms	Single arm, double arms, triple arms, four arms
	Material & Manufacturing Process
7	Base Material	Base steel grades: Q235B, Q355B

8	Anti-corrosion Treatment	Hot-dip galvanization (compliant with Chinese national standard & ASTM A123). Zinc coating thickness ≥85μm, with 20–30 years rust-free warranty.For coastal areas: Double anti-corrosion treatment consisting of hot-dip galvanization plus outdoor polyester powder coating. Powder coating thickness ranges from 60 to 120μm, featuring excellent salt spray resistance and UV resistance.
9	Surface Finish Color	International standard RAL color chart; custom colors available per customer’s RAL number.
	Mechanical Safety Parameters
10	Wind Resistance Rating (Wind Speed)	Wind resistance compliant with local wind pressure standards, capable of withstanding wind speeds of 30m/s, 35m/s, 40m/s, 45m/s.
11	Rated Top Load Capacity	The pole top supports the total weight of lamps and Solar Panels including cantilever weight: standard load capacity 80kg for 6m poles, 150–300kg for 12m poles.
12	Yield Strength & Steel Tensile Test Report	Test certificates can be provided upon request
	Base Installation Matching Parameters
13	Bottom Flange Plate Size	Square or circular flange plates available, with customizable length, width, outer diameter, flange thickness, anchor bolt hole diameter and hole spacing. Customers shall match the pre-embedded anchor cage accordingly
14	Anchor Bolt Specification	Common high-strength Grade 8.8 anchor bolts: M16/M18/M20/M24/M27/M30, complete with matching nuts and washers.
15	Installation Method	Two installation methods: Flange foundation embedding (mainstream for municipal projects) and direct burying (cost-effective for rural roads)
