Product Description

Product Attributes

Model No.: CLJT-032

Brand: CLJT

Packaging & Delivery

The file is encrypted. Please fill in the following information to continue accessing it

6e07f0e2541fd324bc9f78e5852a6135_raw



Product Description

Details of street light Pole

Rod is the carrier of all equipment, and it is divided into:

LED Lamp Post, solar lamp post, traffic lamp post, pedestrian lamp post, electronic police post (monitoring post), high pole lamp, middle pole lamp, gantry (courtyard lamp, smart lamp post) and so on.

Name of parts:

Main pole, flange, stiffener, cross arm, embedded/ground cage, mounting bracket.

Components of each category:

Street Light Pole: main pole, bottom flange, bottom stiffener, cross arm, embedded.

Solar Street Lamp pole: main pole, bottom flange, bottom stiffener, cross arm, embedded, Solar Panel bracket.

Traffic signal light pole: main pole, bottom flange, bottom stiffener, cross arm, cross arm flange, cross arm stiffener, embedded and signal lamp mounting bracket.

Traffic signal light pole: main pole, bottom flange, bottom stiffener, cross arm, cross arm flange, cross arm stiffener, embedded, electronic police mounting bracket/guide rail.

High pole lamp: main pole, bottom flange, bottom stiffener, lamp panel (the most complicated part), embedded.

Production of Lamp Post Outdoor

Light Poles production process

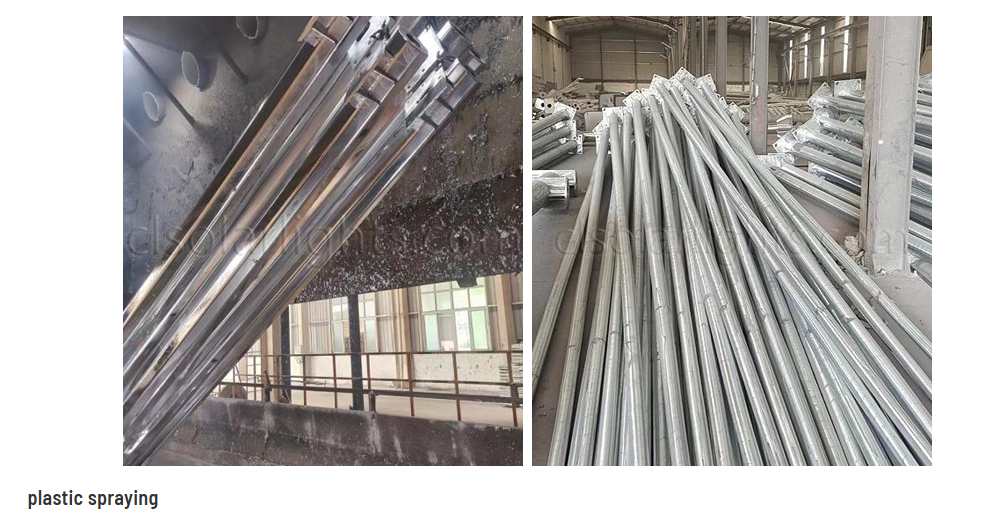

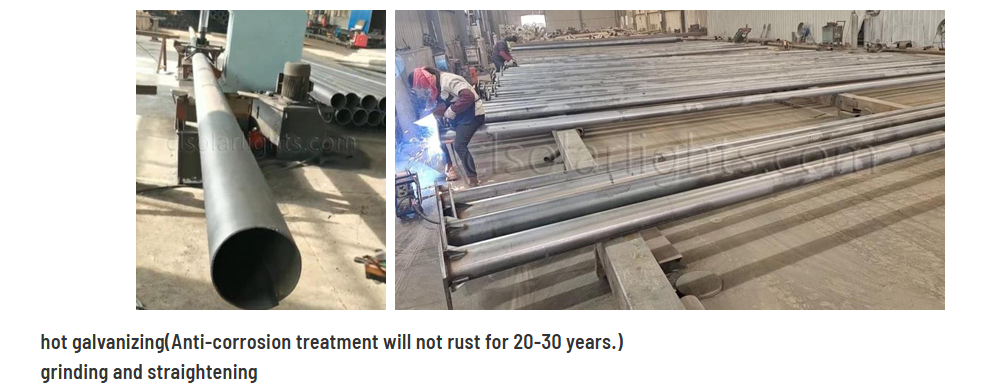

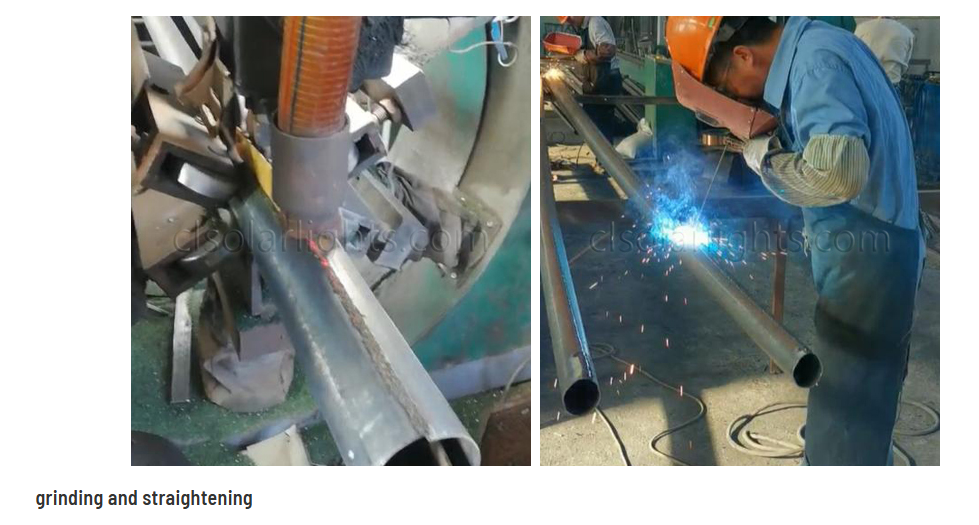

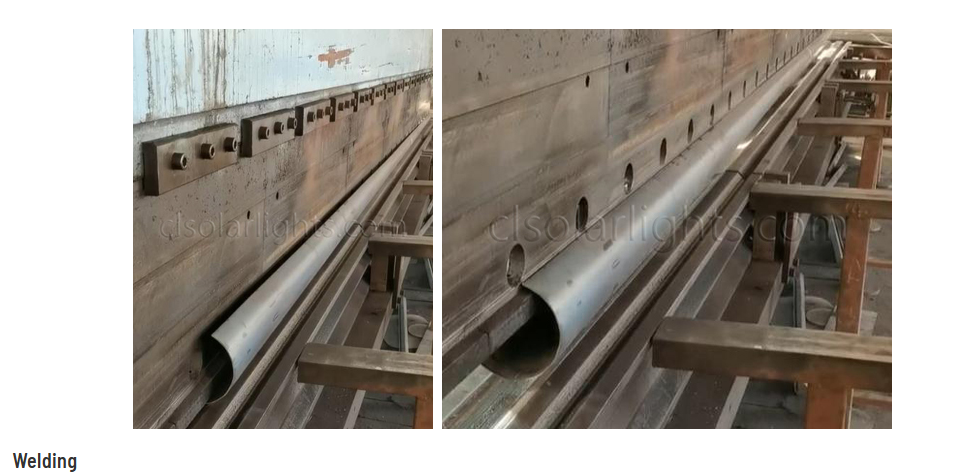

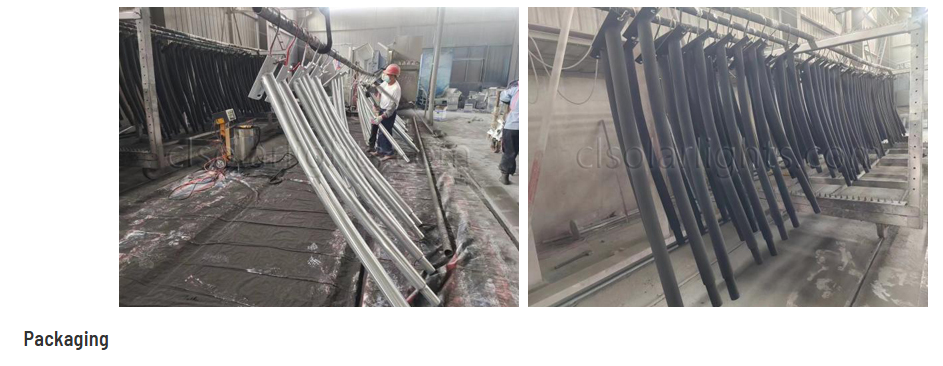

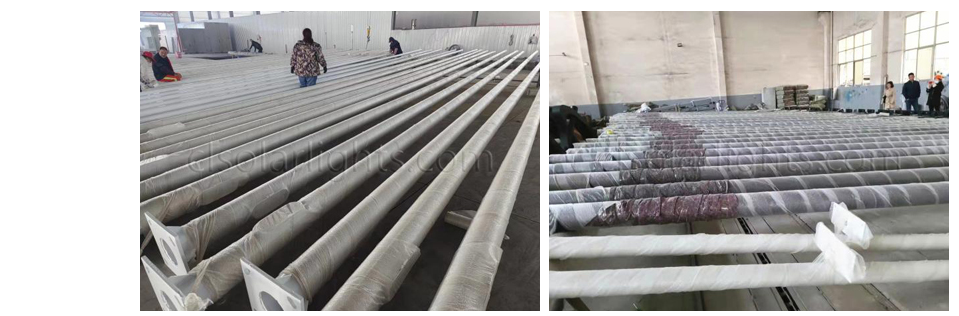

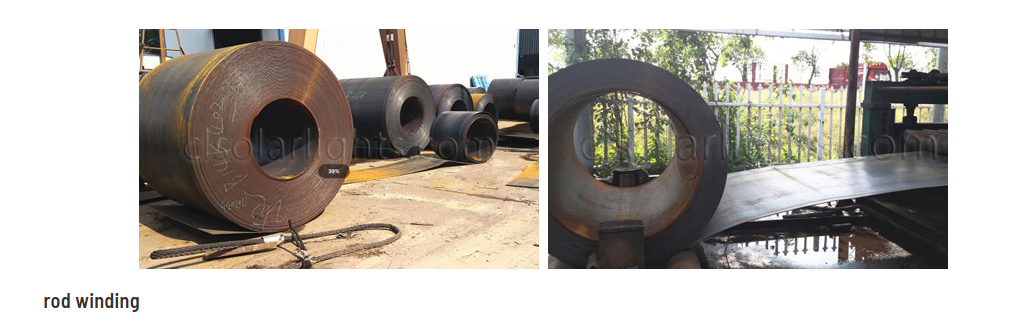

Steel plate leveling---rod winding---welding--- grinding and straightening--- hot galvanizing---grinding and straightening---plastic spraying and packaging.

The process of all bars is like this. Let's take the street lamp bar as an example to introduce it emphatically.

Steel plate leveling

According to the height, diameter and wall thickness of the bar required by the customer, select the appropriate plate for Kaiping.
