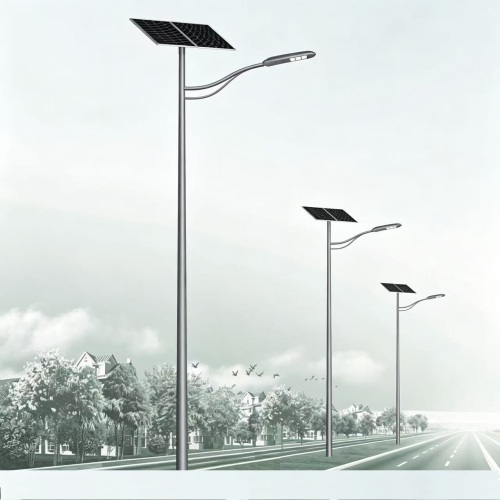

solar panel light poles

Get Latest Price

Min. Order:

1 Others

Contact Now

Product Description

Product Attributes

Brand: CLJT

Warranty Period (years): 10-Year

Place Of Origin: China

Material: Steel

Packaging & Delivery

Selling Units

Others

The file is encrypted. Please fill in the following information to continue accessing it

Production video



Product Description

Two questions about Led Street Lights:
Question 1: Suggestions on road width and Led Light Street height?

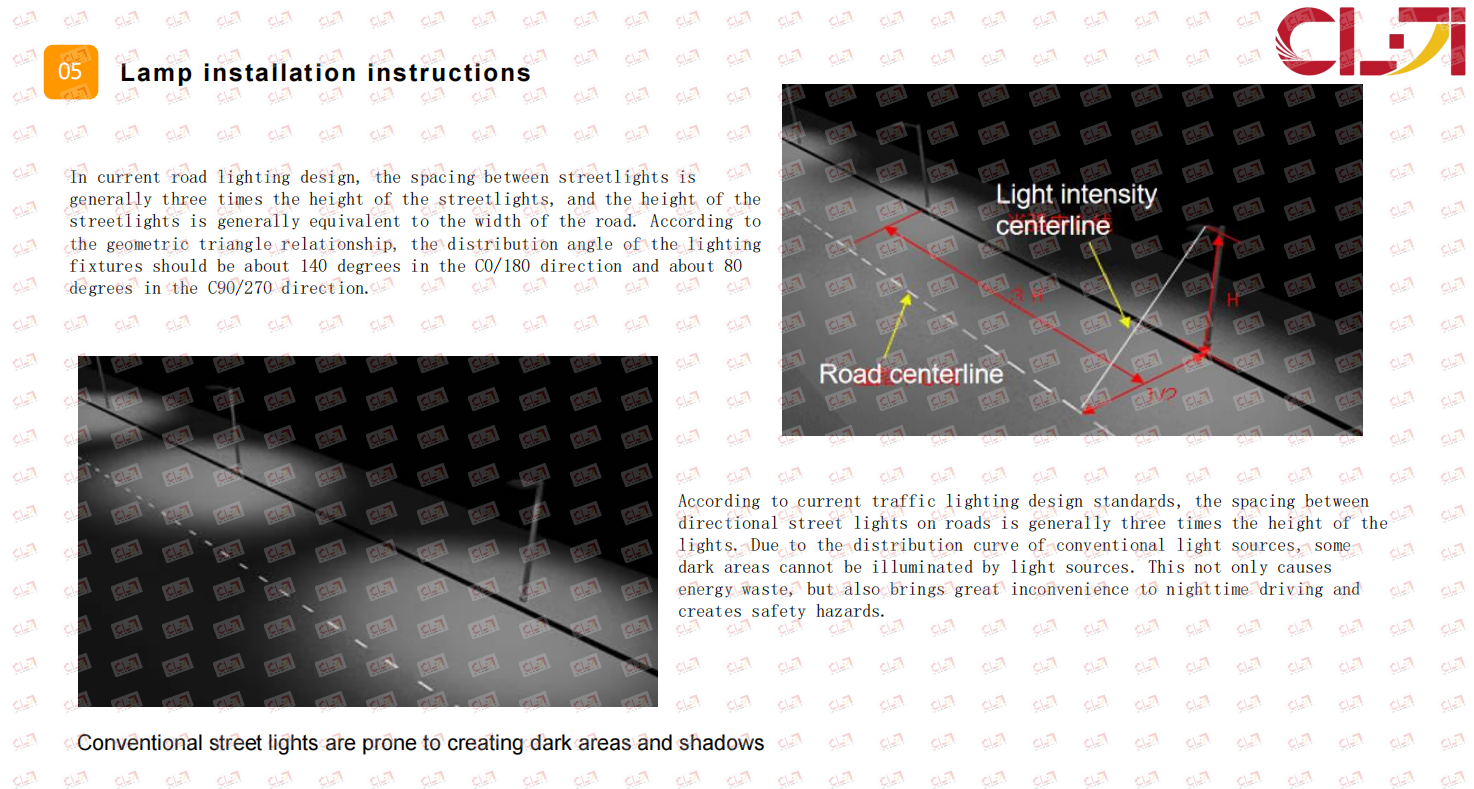

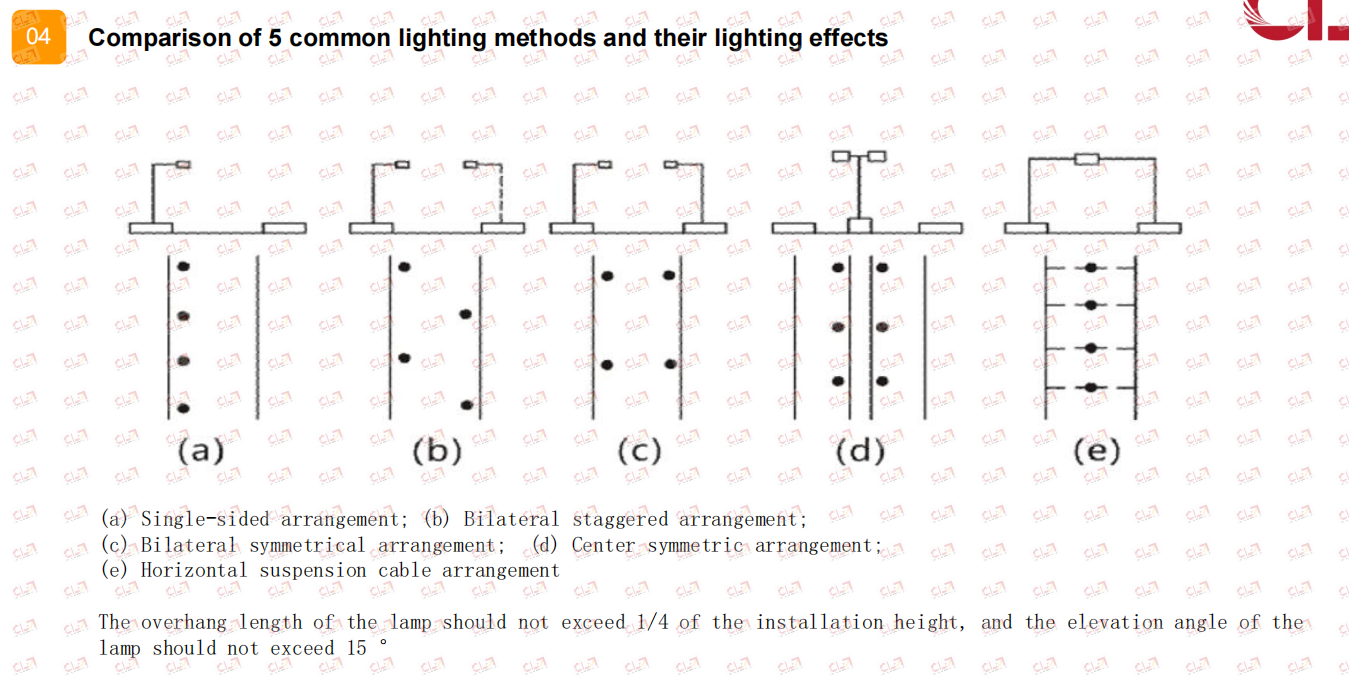

The ratio of road width to Outdoor Led Light lamp height is a key factor in ensuring lighting uniformity and effectiveness. Generally speaking, the height of street lamps should be about 0.5 to 0.7 times the width of the road (installed on both sides). For example:
-For roads with a width of 10 meters, it is recommended that the height of streetlights be between 5 and 7 meters.
-For a two-way lane with a width of 20 meters, the recommended height for street lights is 10 to 14 meters.

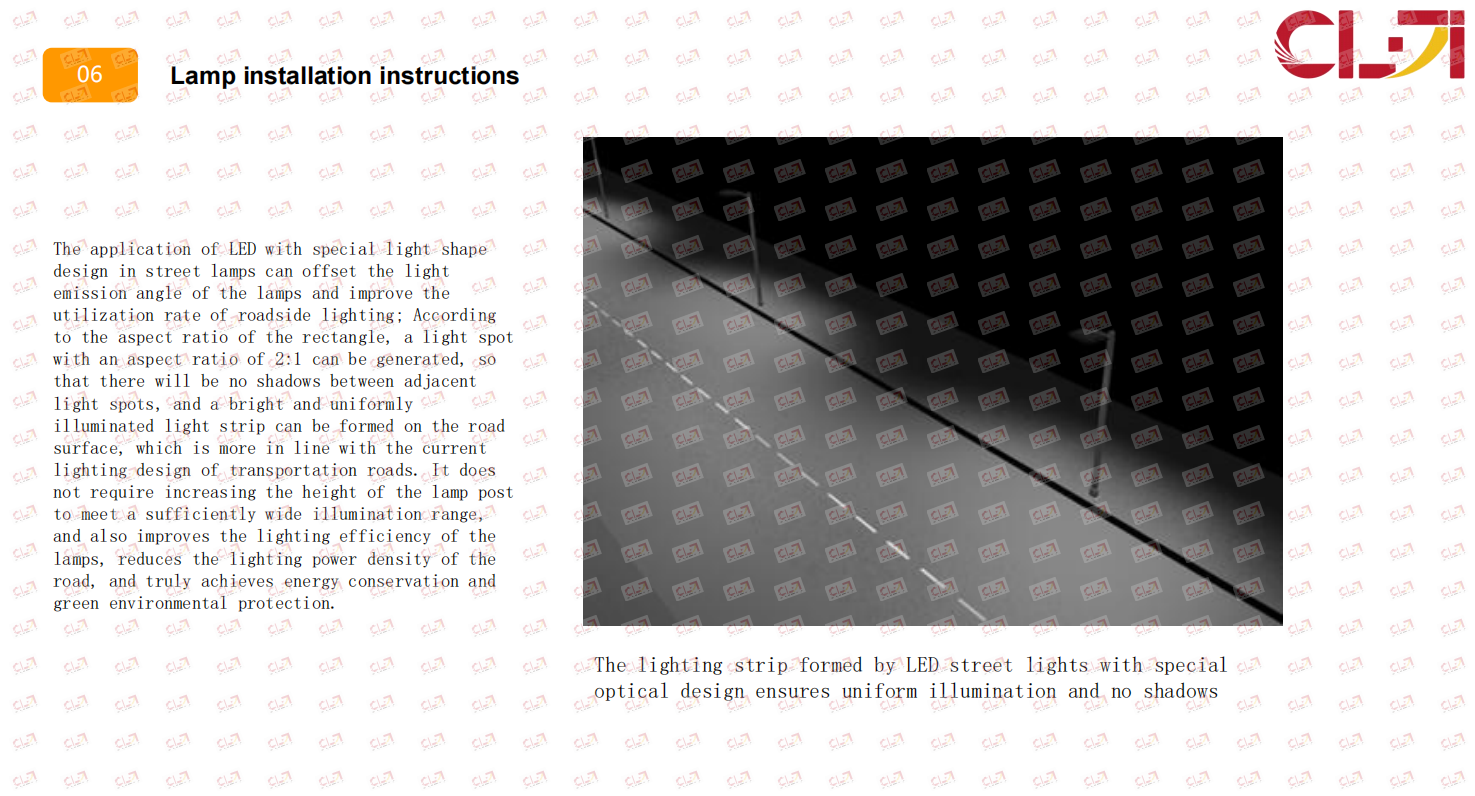

This ratio can ensure uniform light coverage, reduce blind spots in lighting, and avoid excessive or insufficient light.
Question 2: How many watts ofOutdoor Lighting Street heads are suitable for lamp posts of different heights, and what is the basis for this?
The power selection of LED lamp heads should be based on the height of the Lamp Post, lighting requirements, and road type. The following are general suggestions:
6-8 meter lamp post : Suitable for sidewalks and residential roads, it is recommended to use 30-60 watt LED lamp heads.
8-12 meter lamp post : Suitable for urban secondary roads and branches, it is recommended to use 80-150 watt LED lamp heads.
12-15 meter lamp post : Suitable for main roads and expressways, it is recommended to use 150-250 watt LED lamp heads.
High pole lights above 15 meters: suitable for squares and large intersections, it is recommended to use multiple 250-400 watt LED lamp heads in combination.
basis:
1. Illumination requirements: According to the "Design Standard for Urban Road Lighting" (CJJ45), different road types have corresponding illumination requirements.
2. Light efficiency and energy saving: LED lamp heads have high light efficiency (usually 100-150 lumens/watt), and power selection needs to balance energy saving and lighting effects.
3. Installation height and illumination range: The higher the lamp post, the larger the illumination range, but higher power is required to ensure that the ground illumination meets the standard.
By combining actual needs and standard specifications, selecting the appropriate power can achieve the best lighting effect.
